Nucleic Acid Purification / Extraction System

High-efficiency automated nucleic acid isolation platforms designed for rapid extraction of premium purity DNA and RNA.

Sample Preparation

Automated Magnetic Bead Extraction Systems

Nucleic acid purification is the vital first step in molecular diagnostics and genomic research. At DNA Dynamics, we provide advanced, fully automated Nucleic Acid Purification and Extraction Systems designed to deliver consistent, contamination-free isolation of DNA and RNA from diverse sample types. Utilizing industry-standard magnetic bead separation technology, our systems offer variable throughputs to match the needs of low, medium, and high-volume testing facilities.

Our instruments feature highly uniform thermal heating profiles, adjustable magnetic rod configurations, and integrated UV disinfection cycles to guarantee sample integrity. Designed with open reagent architecture, they accommodate a wide array of commercial magnetic bead-based extraction kits. Whether your work involves clinical viral screening, pathogen genotyping, forensic matching, or oncology research, our systems ensure maximum yield and reproducibility.

Extraction Highlights

  • Magnetic Bead Extraction Method
  • Flexible Throughputs (16, 32, 96 Channels)
  • High Recovery Efficiency (>98%)
  • Intuitive Touchscreen Program Control
  • Cross-Contamination Protective Enclosure
Product Catalog

Explore Extraction Hardware Systems

Compare our premium range of automated extraction systems, engineered for maximum recovery, precision temperature control, and high processing speeds.

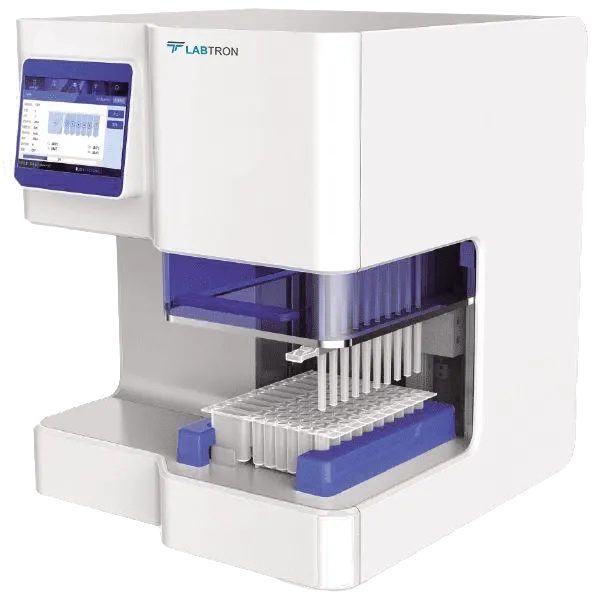

Nucleic Acid Purification System LNAP-A20
Labtron Brand

Purification System LNAP-A20

The LNAP-A20 is a compact, automated extraction system optimized for processing up to 10 samples simultaneously. With a large 5 mL maximum sample volume capacity, it is ideal for low-throughput clinical labs needing high yield from sparse samples.

Key Specifications
  • Sample Quantity: 10 channels
  • Process Volume: 50 to 1000 µl
  • Max Sample Volume: 5 ml
  • 5 ml tube strip + magnetic rod tip

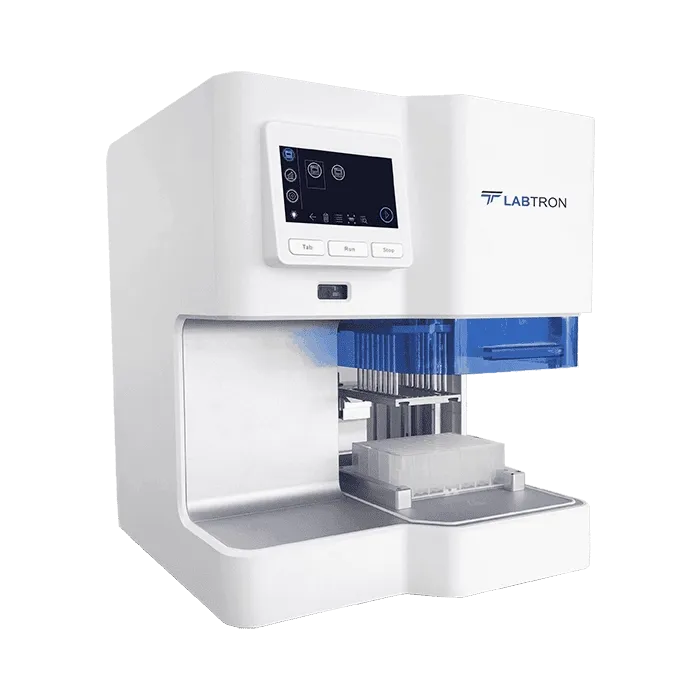

Nucleic Acid Purification System LNAP-A30
Labtron Brand

Purification System LNAP-A30

Engineered for routine molecular workflows, the LNAP-A30 handles 16 samples per run. Features deep-well processing plates to optimize bead separation times and returns high-purity template fractions in under 40 minutes.

Key Specifications
  • Sample Quantity: 16 channels
  • Process Volume: 50 to 1000 µl
  • Max Process Volume: 1 ml
  • 96 deep-well plate compatible

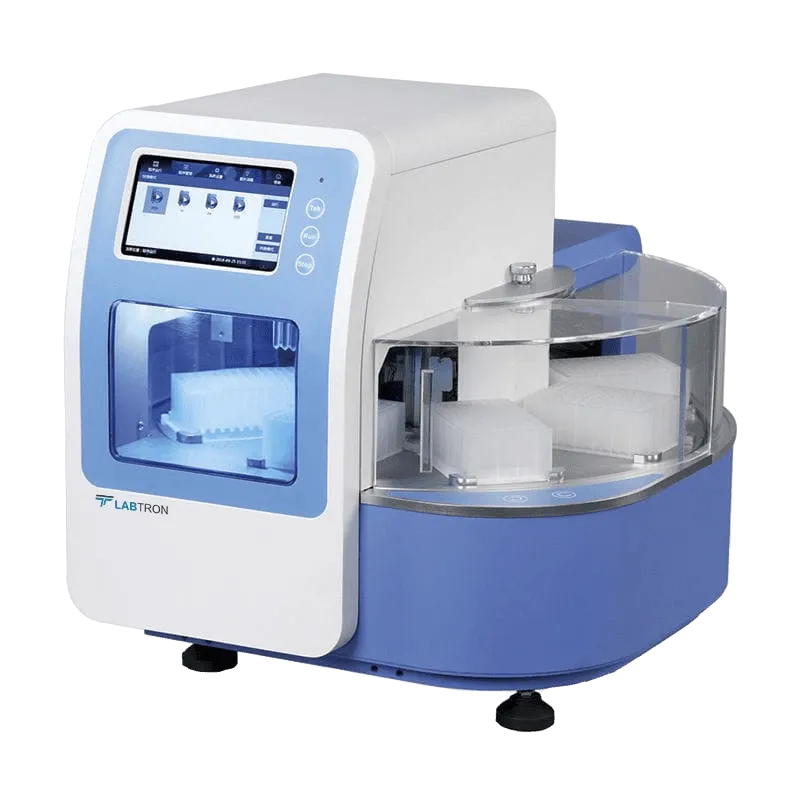

Nucleic Acid Purification System LNAP-A50
Labtron Brand

Purification System LNAP-A50

Our high-throughput solution, the LNAP-A50 processes up to 96 samples simultaneously. Featuring a robust 96 magnetic rod configuration, it is designed for heavy diagnostics screening, central bio-banking, and central research setups.

Key Specifications
  • Sample Quantity: 96 channels
  • Process Volume: 50 to 1000 µl
  • 96 Deep well plate format
  • Magnetic Bead Recovery: >98%

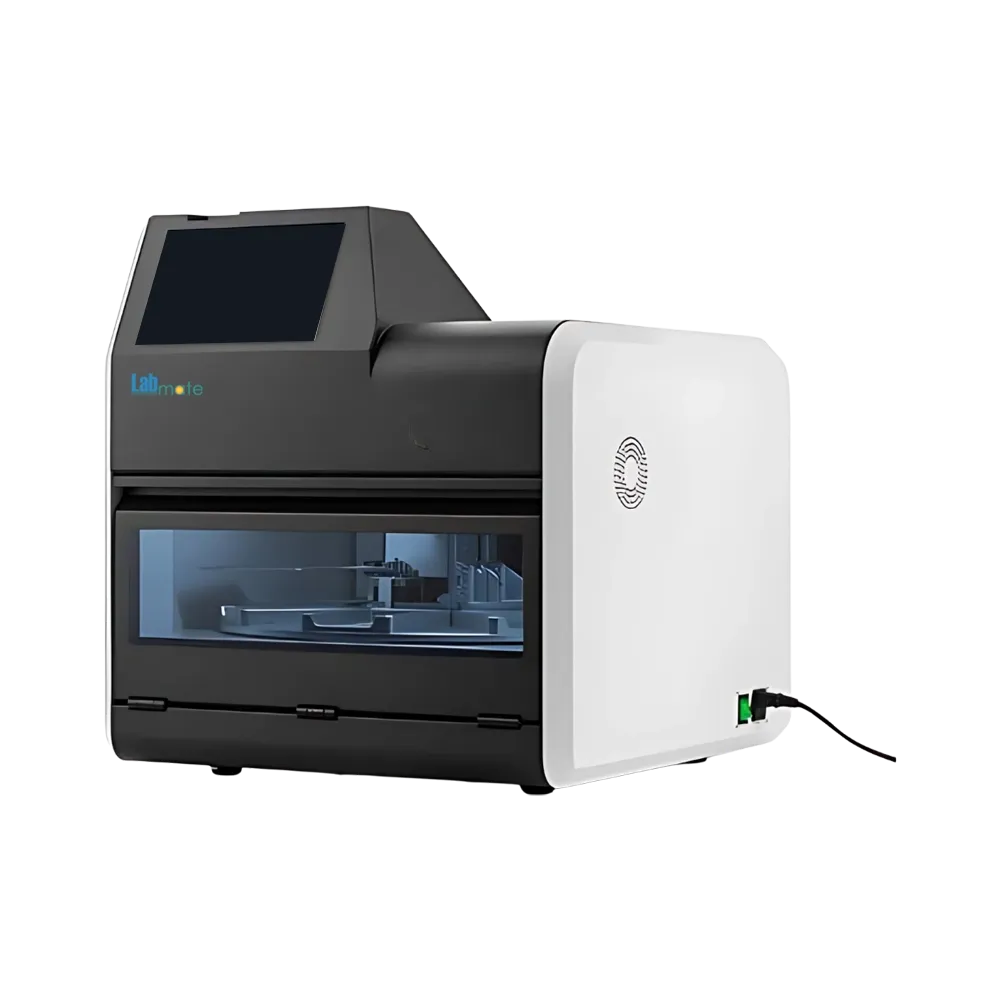

Automatic Nucleic Acid Extraction System LMNAE-A100
Labmate Brand

Extraction System LMNAE-A100

The LMNAE-A100 is a premium clinical-scale automatic extractor. Armed with an open reagent platform, it isolates high-purity DNA and RNA in 8 to 40 minutes depending on sample reagents, featuring LIMS tracking support.

Key Specifications
  • Throughput: 1 to 96 samples
  • Processing Volume: 30µl to 1000µl
  • Extraction Time: 8 to 40 min
  • Rate Variation: CV ≤ 3%
Engineering Standards

Key Features & Applications

Our systems combine reliable mechanical structures and advanced software parameters to ensure molecular sample preparation is fast and secure.

Magnetic Bead Efficiency

Optimized magnetic rod arrays ensure complete bead capture, achieving recovery efficiencies of over 98% for high-yield diagnostic isolation.

High Yield & Purity

Consistent heating blocks ensure complete sample lysis and elution, returning highly pure genomic templates for downstream PCR, qPCR, and NGS.

Smart UI Interface

Large high-resolution color touchscreen controller permits rapid protocol editing, parameter tracking, and simple one-touch operations.

Safety & Decontamination

Integrated UV lamps and HEPA filtration systems protect users and isolate sample batches from cross-contamination between run cycles.

Open Reagent Architecture

Fully compatible with commercial deep-well plates and raw extraction kits, ensuring cost-efficient lab operations.

LIMS Integration

Equipped with USB, network ports, and barcode scanning modules to sync diagnostic files with central Laboratory Information Management Systems.
