Vacuum Pumps

High-performance direct drive, belt drive, and filtration vacuum pumps engineered for precise pressure management in analytical workflows.

Pressure & Flow Control

Precision Vacuum Management for Analytical Applications

Laboratory vacuum pumps are crucial instruments designed to generate and maintain low pressure, aiding in applications such as chemical distillation, fluid filtration, gas aspiration, and freeze drying. At DNA Dynamics, we provide a robust portfolio of high-efficiency direct drive and belt-driven rotary vane vacuum pumps sourced from global leaders. Engineered to deliver exceptional gas displacement and ultimate vacuum depth, our pumps secure reliable long-term performance.

Our vacuum systems are equipped with low-noise brushless motors and integrated oil-mist filters that prevent emissions in the laboratory. Constructed with heavy-duty corrosion-resistant materials and solid mounting brackets, they minimize vibrations and maintain exceptional thermal dissipation. Built-in gas ballast valves and backflow prevention locks ensure sample safety and prevent motor damage during heavy solvent runs.

Vacuum Pump Highlights

  • Ultimate High Vacuum Depth
  • Ultra-Quiet Brushless Motor Operation
  • Integrated Oil-Mist Emission Filtration
  • Highly Optimized for Suction & Filtration
  • Backflow Prevention Safety Lock
Product Catalog

Explore Vacuum Pumps

Compare our high-efficiency direct drive, belt drive, and filtration vacuum pumps engineered for precise pressure management and extraction.

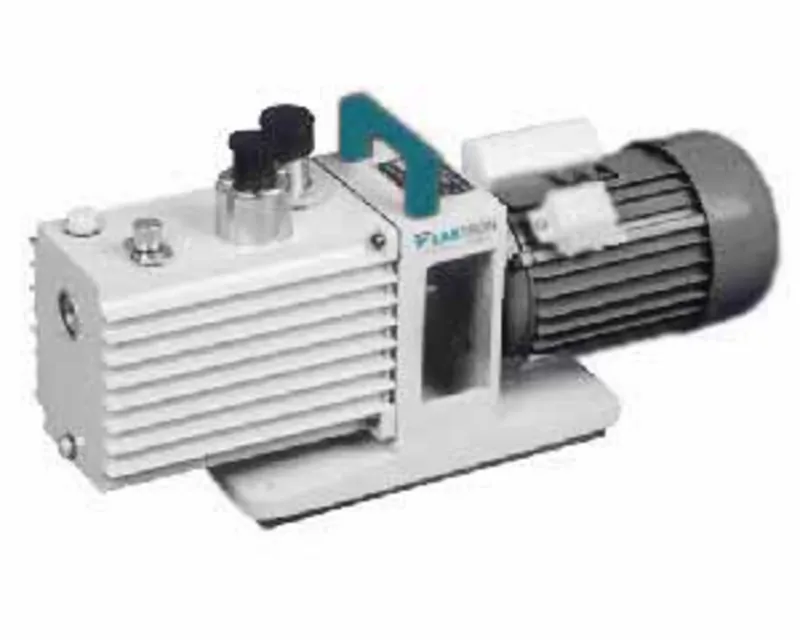

Direct Drive Vacuum Pump LDDVP-A10
Labtron

Direct Drive Pump LDDVP-A10

High-speed dual-stage direct drive rotary vane vacuum pump featuring a 2 L/s pumping rate, gas ballast valve, and backflow prevention lock for standard distillation setups.

Key Specifications
  • Pumping Rate: 2.0 Liters/sec
  • Ultimate Pressure: 6.0 × 10^-2 Pa
  • Oil Capacity: 1.0 Liter
  • Motor Power: 0.37 kW

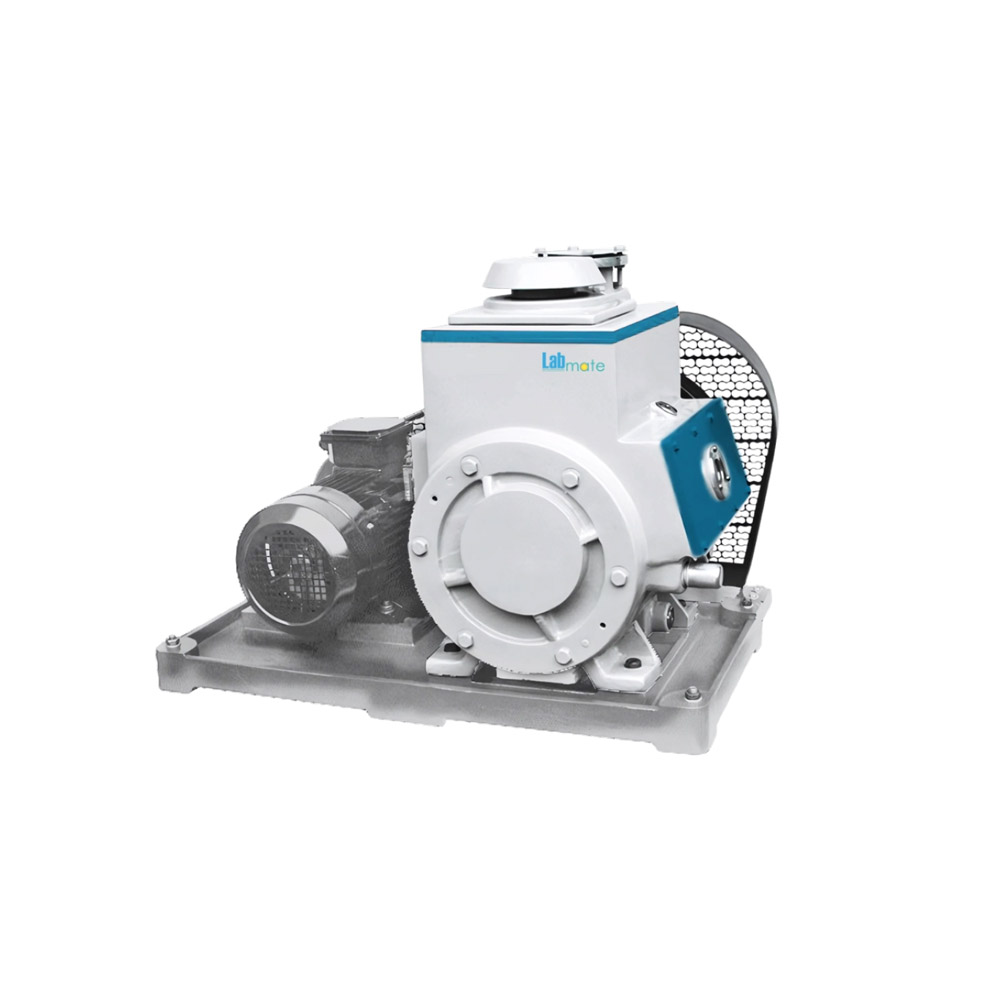

Belt Driver Vacuum Pukmp LMBVP-A104
Labmate Scientific

Belt Driver Vacuum Pukmp LMBVP-A104

This versatile pump serves as a standalone unit and seamlessly transitions between roles as a fore pump, process pump, titanium pump, booster pump, oil diffusion pump, or molecular pump in diverse setups.

Key Specifications
  • Pumping Speed: 4200 L / min
  • Ultimate Pressure: ≤ 1 Pa
  • Oil Capacity: 4.2 L
  • Rotating Speed: 420 rpm

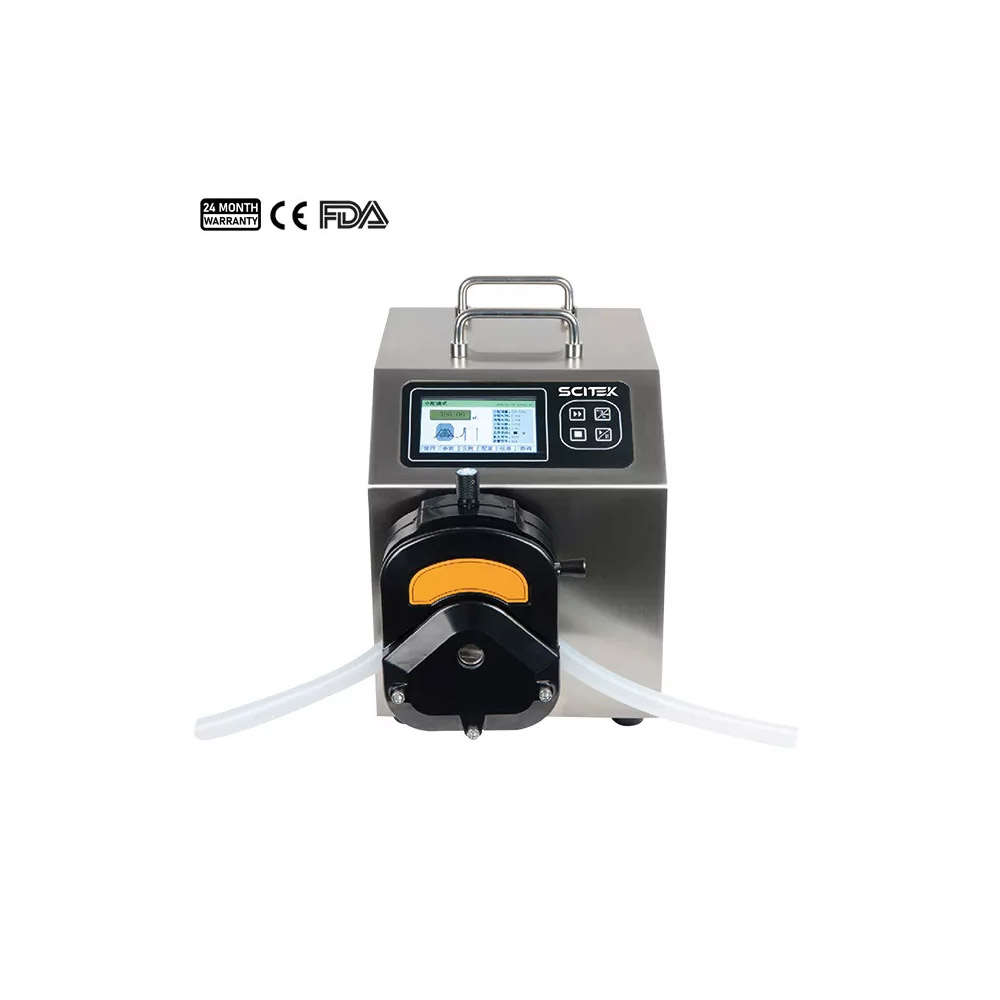

Dispensing Peristaltic Pump, Touch Screen DPP-G600FC
Scitek Global

Dispensing Peristaltic Pump, Touch Screen DPP-G600FC

Small, simple and accurate variable flow peristaltic pumps for metering or transferring fluids at flow rates up to 12000ml/min.

Key Specifications
  • Speed Range : 0.01~600rpm
  • Flow Resolution : 0.01ml/min
  • Flow Range : ≤12000ml/min
  • Drive Size(WxDxH)mm : 243×400×310

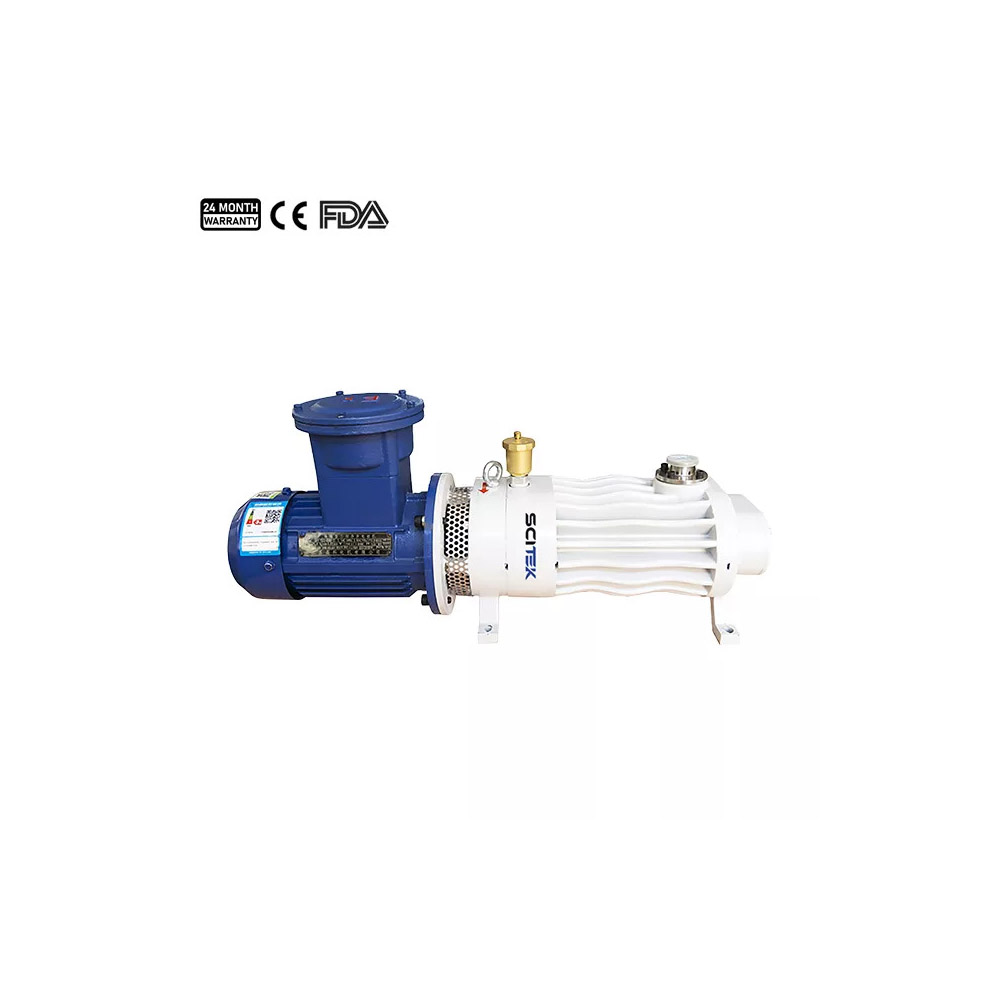

Dry Screw Pump
Scitek Global

Dry Screw Pump

This dry screw vacuum pump is independently innovated and developed by our company based on absorbing numerous superior technologies from abroad, using a new generation of composite variable pitch screw technology.

Key Specifications
  • Pumping Speed (m³/h) : 10; 20; 52; 80
  • Rated power (Voltage) : 380/220
  • Frequency (Hz) : 50/60
  • Cooling method : Aircooling
Engineering Standards

Key Features & Applications

Our vacuum pumps combine advanced gas displacement and structural controls to ensure efficient laboratory pressure regulation.

Ultimate Vacuum Depth

Dual-stage compression achieves high vacuum levels, ideal for demanding distillation and drying assays.

Anti-Backflow Valve

Integrated check valve immediately seals the intake during shutdown, preventing pump oil from contaminating samples.

Oil-Mist Filtration

Exhaust oil-mist separator filters oil particles from exiting gas, keeping lab air clean and reducing oil consumption.

Dual-Stage Rotary Vanes

Vanes made of high-strength, wear-resistant materials ensure consistent gas displacement and prolonged lifetimes.

Direct & Belt Drive Options

Direct drive offers compact size and high speed; belt drive provides low RPM for heavy continuous solvent loads.

Ultra-Quiet Operation

Precision balanced rotors and dynamic shock absorbers suppress noise levels to maintain a quiet laboratory.

Adjustable Gas Ballast

Allows controlled purging of condensable vapors, preventing solvent condensation in the pump oil.

Over-Temp Protection

Thermal sensors automatically shut down the motor if internal temperatures exceed safety parameters, preventing burnout.

Solid Cast Build

Durable cast iron/aluminum housing structures optimize heat dissipation and safeguard internal pump vanes.

Oilless Diaphragm Options

Filtration models employ oilless PTFE diaphragms for chemical-resistant and maintenance-free operation.

Suction Control Knobs

Filtration series feature built-in vacuum gauges and dial regulators for precise manual flow rate adjustments.

Low Maintenance Design

Large oil windows and easy-drain ports simplify daily oil level checks and scheduled maintenance routines.
